FNC 100H系列编码器

一般特征

  • Industry 100 mm design, through hollow shaft
  • Robust mechanical and electrical construction
  • Protection up to IP67
  • Up to 10.000 PPRmax.
  • <300 kHz frequency

ISBN : FNC 100H 38630V1024 - R2

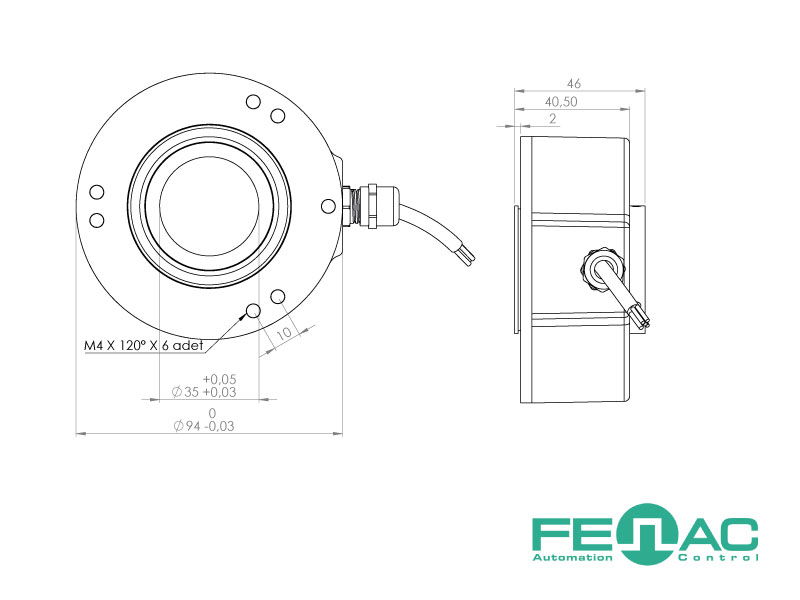

法兰直径 100 mm,
电源电压 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,

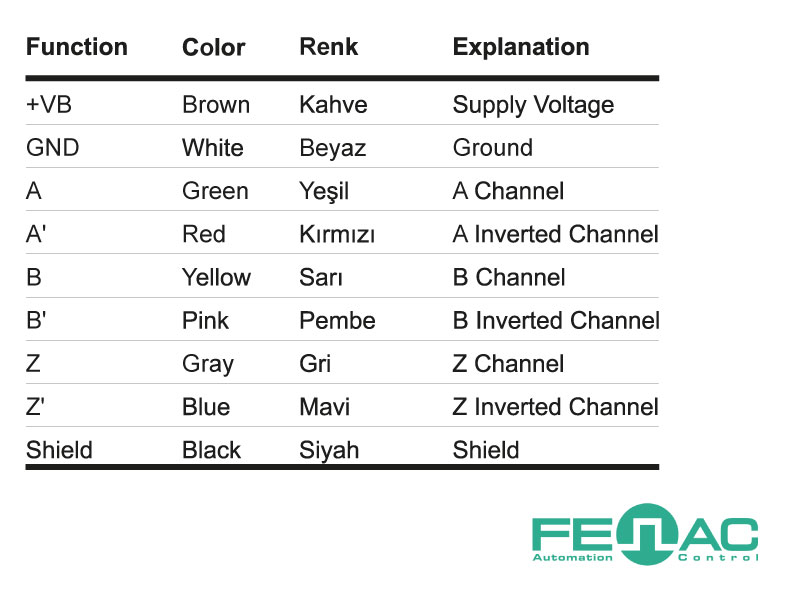

连接类型 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin,
轴直径 26 mm, 28 mm, 30 mm, 32 mm, 38 mm, 40 mm, 42 mm, 44 mm,
脉冲 1024, 2000, 2048, 2500, 4000, 4096, 5000, 8000, 8192, 10000,
输出电路 / 推拉 A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
产品组 Incremental Rotary Encoders,
