FNC 540B系列编码器

一般特征

Industry 50 mm size, 20 mm diameter clamping flange
Compatible with universal 40 mm encoders
Robust Mechanical and Electrical Construction
Protection up to IP67
Up to 5000 PPR max.
<300 kHz frequency

ISBN : FNC 540B 6630V1024 - R2


法兰直径 50 mm,
电源电压 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,
连接类型 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin,
轴直径 6 mm, 8 mm, 10 mm,
脉冲 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 5000,

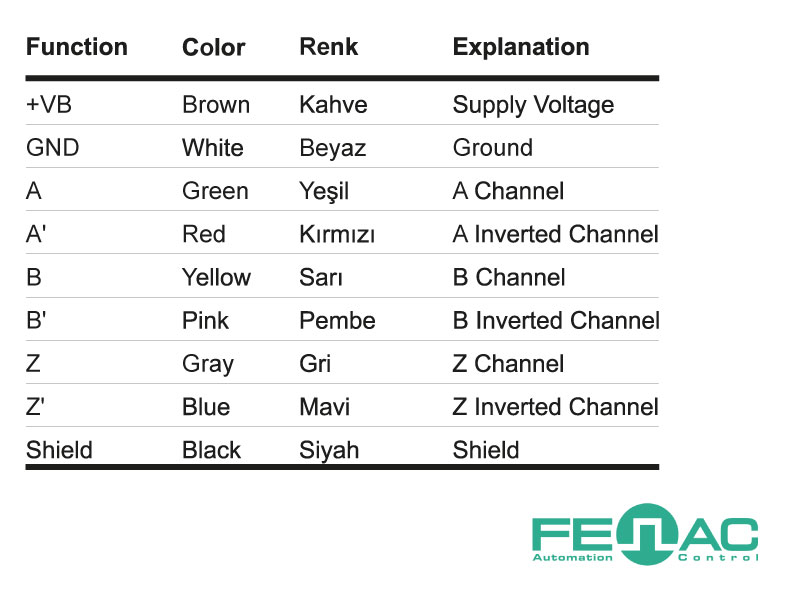

输出电路 / 推拉 A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
产品组 Incremental Rotary Encoders,
