FNC 58B系列编码器
一般特征
- Industry 58 mm Standart Size, Clamping Flange
- Robust Mechanical and Electrical Construction
- Protection up to IP67
- Up to 25.000 PPR max.
- <300 kHz Frequency
ISBN : FNC 58B 8630V1024 - R2

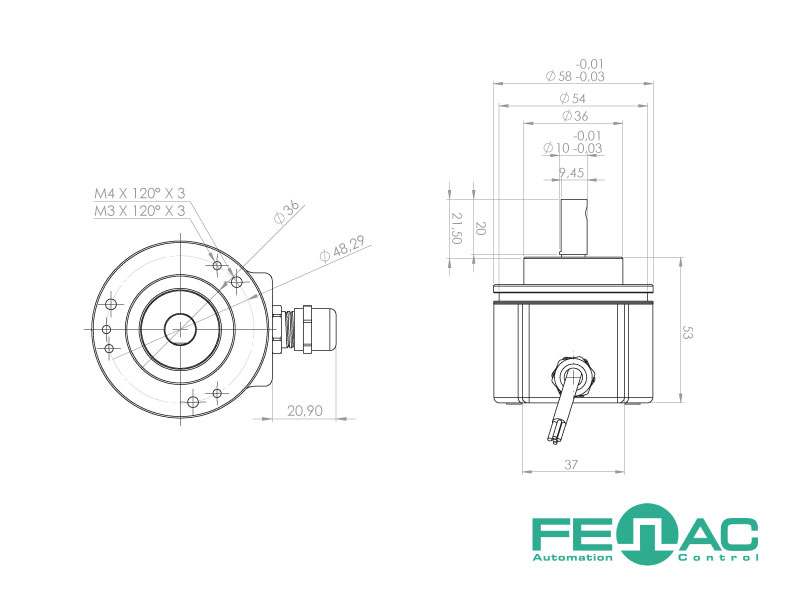

| 法兰直径 | 58 mm, |
| 电源电压 | 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC, |
| 连接类型 | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, |
| 轴直径 | 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, |
| 脉冲 | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8192, 10000, 12500, 16384, 20000, 25000, 65536, |

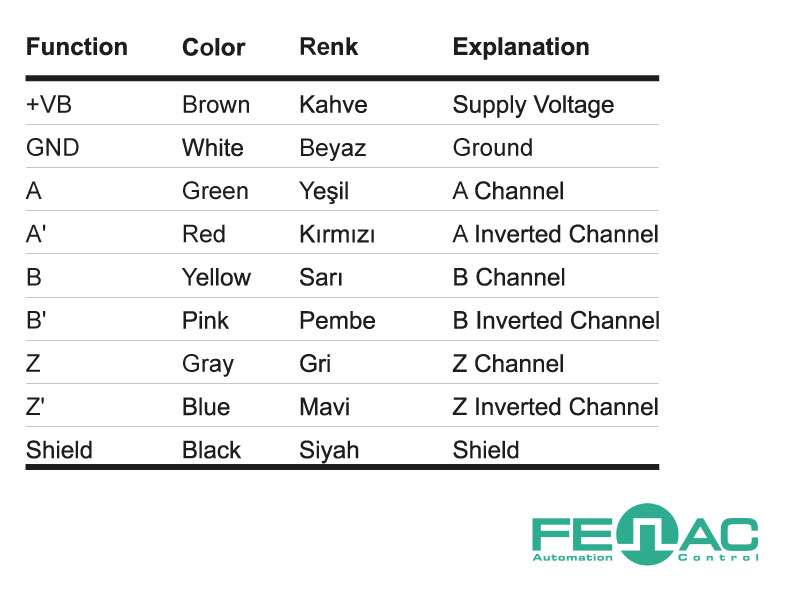

| 输出电路 / 推拉 | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| 产品组 | Incremental Rotary Encoders, |
- FNC 58B系列编码器
-
