FNC 63D系列编码器

一般特征

  • Industry 50 mm Standart Size, Clamping Flange
  • Robust Mechanical and Electrical Construction
  • Protection up to IP67
  • Up to 5000 PPR max.
  • <300 kHz frequency

ISBN : FNC 63D 10630V1024 - R2

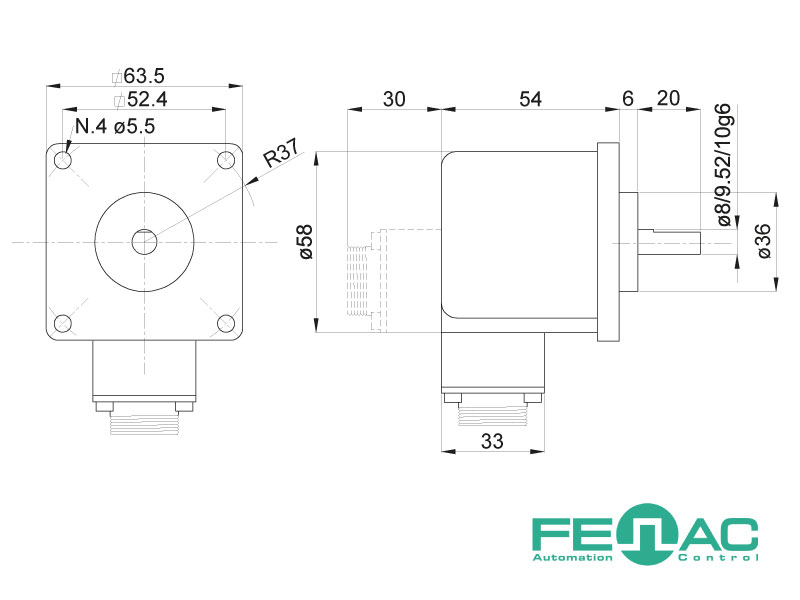

法兰直径 63 mm,
电源电压 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,
连接类型 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin,
轴直径 10 mm, 12 mm, 14 mm,
脉冲 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 65536,

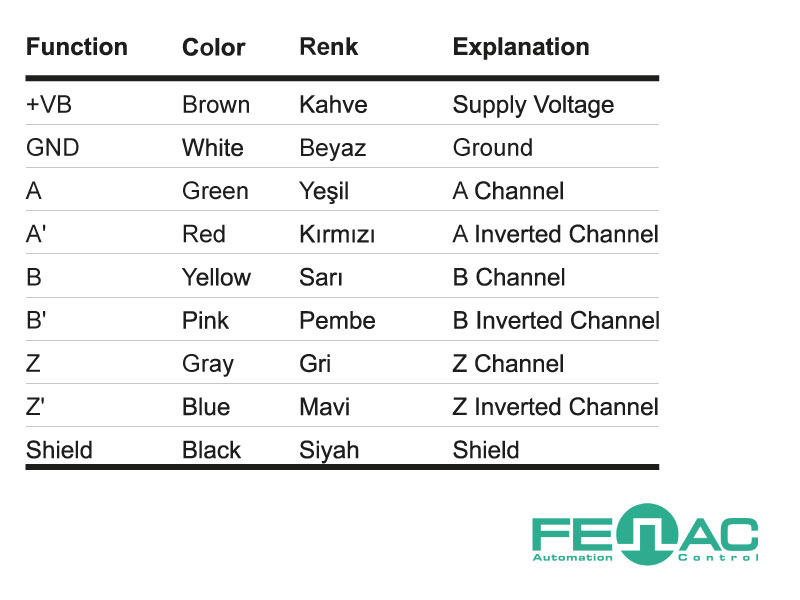

输出电路 / 推拉 A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
产品组 Incremental Rotary Encoders,
