FNC 68K ALM系列编码器

一般特征

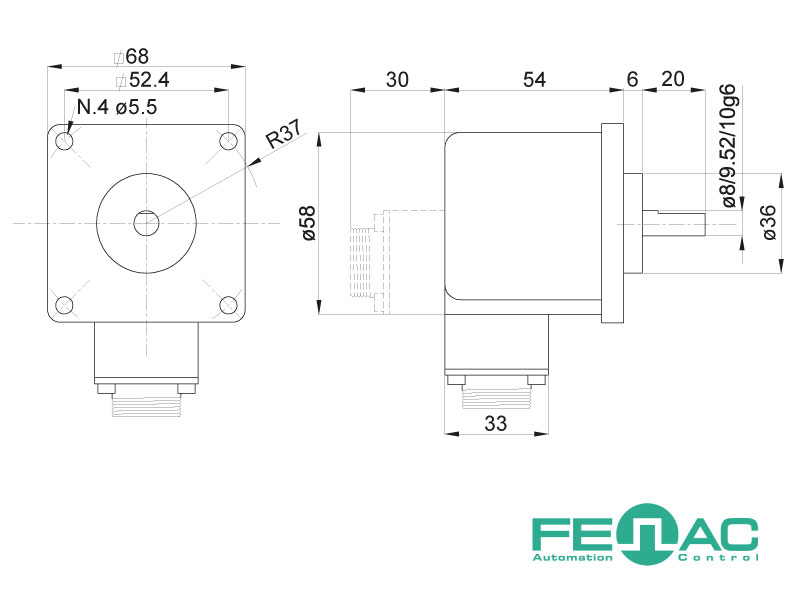

  • Industry 64 mm Special Size,Servo Flange
  • Robuts Mechanical and Electrical Construction
  • Protection up to IP67
  • Up to 5000 PPR max.
  • <300 kHz frequency

ISBN : FNC 68K 10630V 1024 - R2


法兰直径 58 mm,
电源电压 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,
连接类型 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin,
轴直径 6 mm, 8 mm, 10 mm, 12 mm,
脉冲 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 65536,

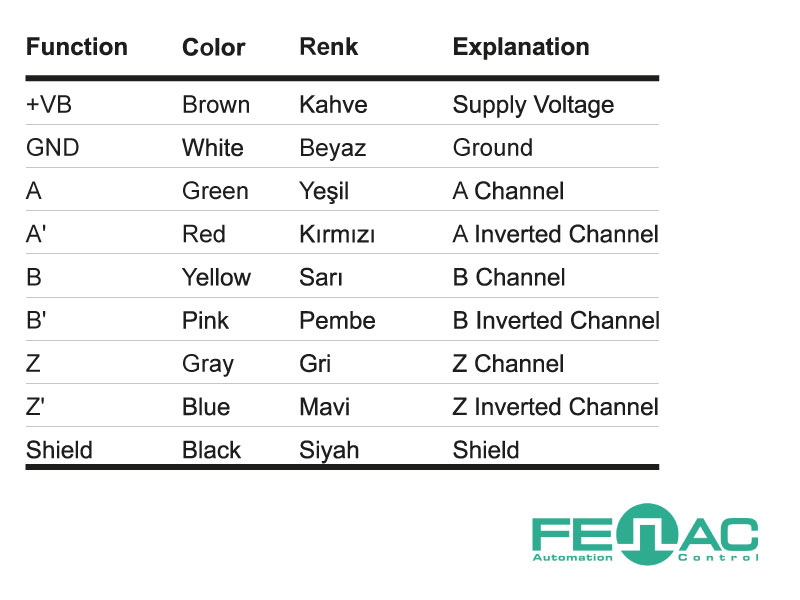

输出电路 / 推拉 A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
产品组 Incremental Rotary Encoders,
