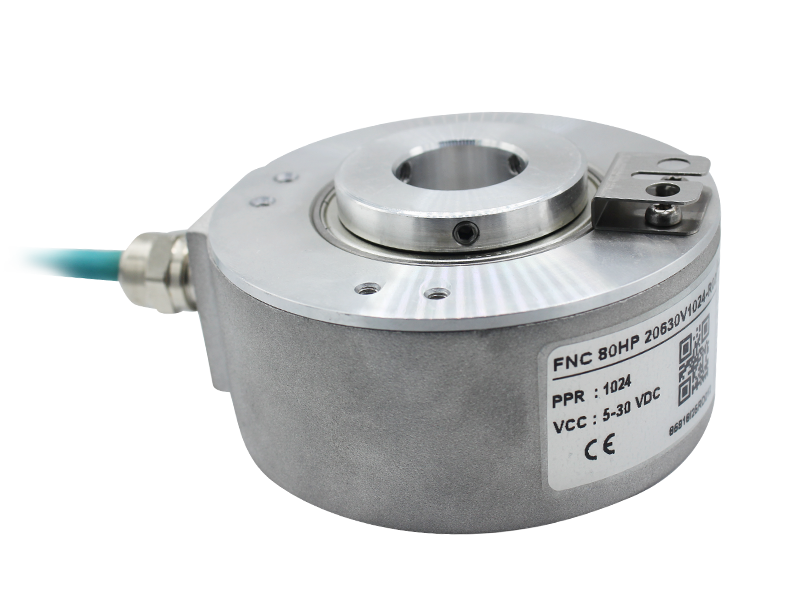

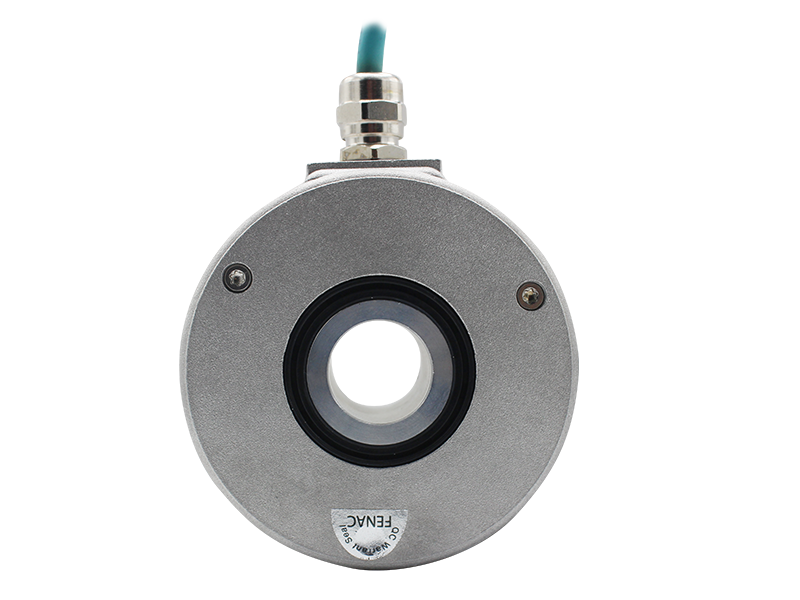

FNC 80H系列编码器
一般特征
- Industry 80 mm Standart Size, Through Hollow Shaft
- Robust Mechanical and Electrical Construction
- Protection up to IP67
- Up to 2500 PPR max.
- <300 kHz Frequency
ISBN : FNC 80HP 25630V1024 - R2
| 法兰直径 | 80 mm, |
| 电源电压 | 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC, |
| 连接类型 | 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin, |
| 轴直径 | 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 22 mm, 24 mm, 25 mm, |
| 脉冲 | 1000, 1024, 1200, 1250, 2000, 2048, 2500, |
| 输出电路 / 推拉 | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| 产品组 | Incremental Rotary Encoders, |
- FNC 80H系列编码器
-
