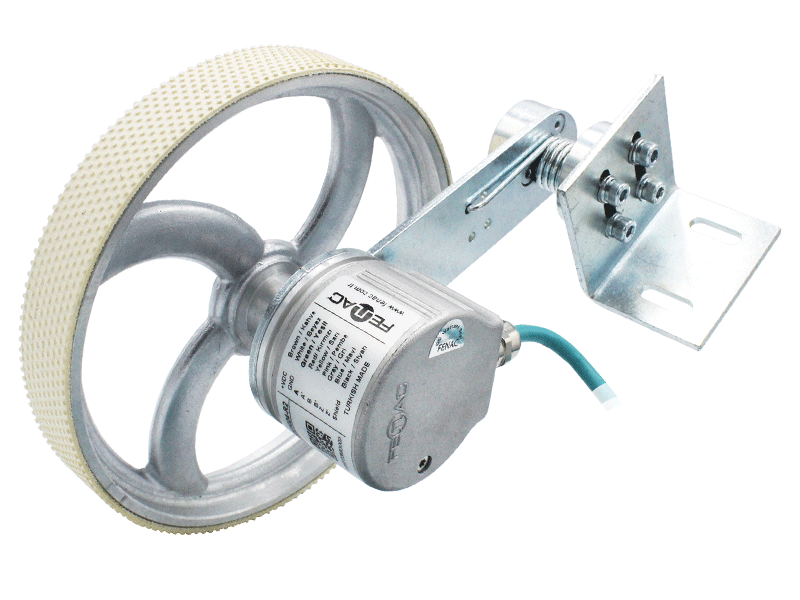

FNC WMS Measuring System

一般特征

  • Industry 58 mm standard size, clamping flange
  • Robust mechanical and electrical construction
  • Protection to IP67
  • Up to 25.000 PPR max.
  • <300 k Hz frequency

ISBN : FNC 58B 10630V10000-R2


法兰直径 58 mm,
电源电压 5V : 5V in/out, 30V : 5-30V in/out,
连接类型 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/5pin, M23/12pin,
轴直径 6 mm, 8 mm, 10 mm, 12 mm,
脉冲 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000,
产品组 车轮编码器,
  • FNC WMS Measuring System
