FNC 30E Series Incremental Encoder

Features

  • Industry 50 mm Standart Size, Servo Flange, incremental encoder
  • Robust Mechanical and Electrical Construction
  • Protection up to IP67
  • Up to 2500 PPR max.
  • <300 kHz frequency

ISBN : FNC 30E 6630V1000 - R2


Flange Diameter 30 mm,
Supply Voltage 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,

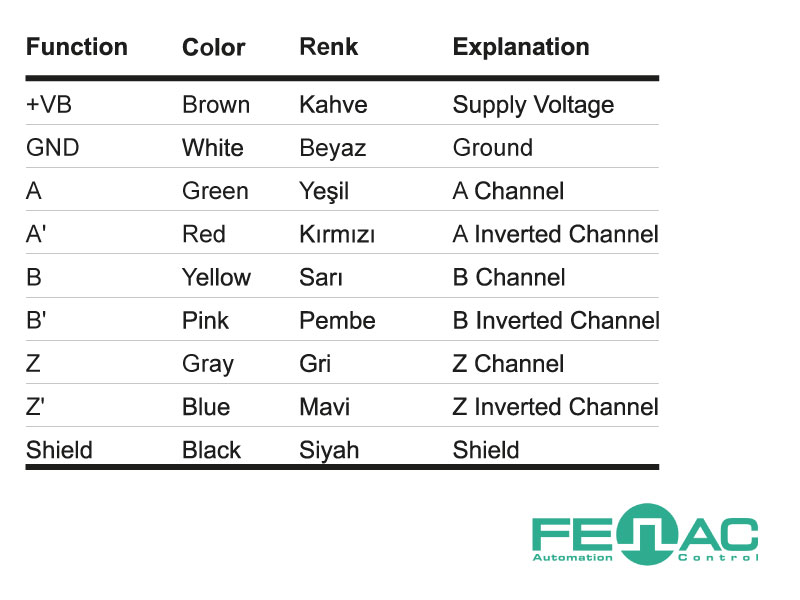

Connection Type 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin,
Shaft Diameter 4 mm, 6 mm, 8 mm,
Resolution / Pulse 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1440, 2000, 2048, 2500,
Output Circuit / Push-Pull A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
Product Group Incremental Rotary Encoders,
