FNC 58B Series Incremental Encoder

Features

  • Industry 58 mm Standart Size, Clamping Flange, incremental encoder
  • Robust Mechanical and Electrical Construction
  • Protection up to IP67
  • Up to 25.000 PPR max.
  • <300 kHz Frequency

ISBN : FNC 58B 8630V1024 - R2

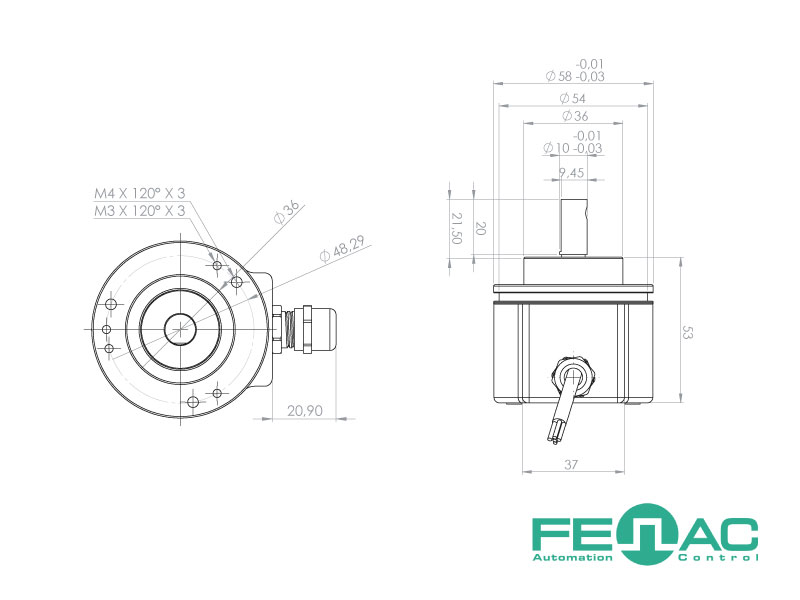

Flange Diameter 58 mm,
Supply Voltage 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,
Connection Type 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin,
Shaft Diameter 6 mm, 8 mm, 10 mm, 12 mm, 14 mm,
Resolution / Pulse 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8192, 10000, 12500, 16384, 20000, 25000, 65536,
Output Circuit / Push-Pull A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
Product Group Incremental Rotary Encoders,
