FNC 64S Series Incremental Encoder

Features

  • Industry 64 mm Special Size, Servo Flange, incremental encoder
  • Robust Mechanical and Electrical Construction
  • Protection up to IP67
  • Up to 5000 PPR max.
  • <300 kHz frequency

ISBN : FNC 64S 10630V1024 - R2

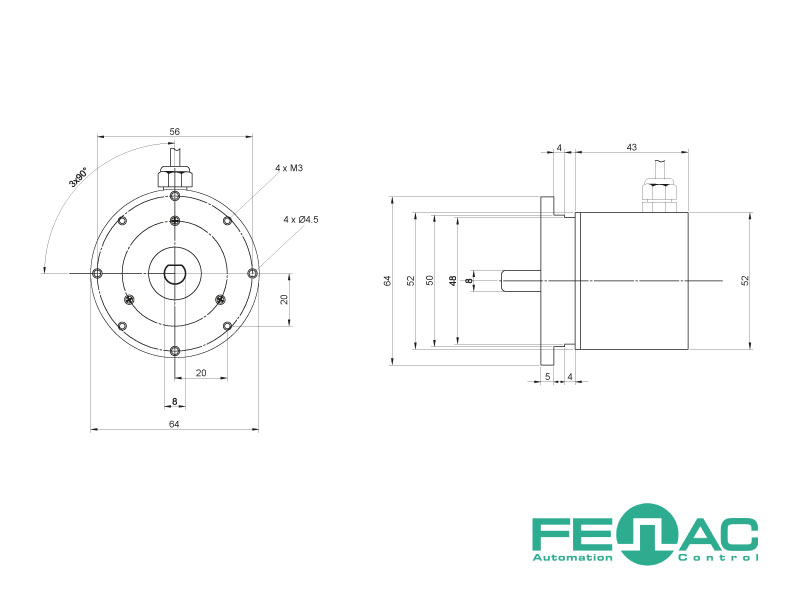

Flange Diameter 64 mm,
Supply Voltage 5V : 5V in/out, 30V : 5-30V in/out, 10 - 30VDC,
Connection Type 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin,
Shaft Diameter 6 mm, 8 mm, 10 mm, 12 mm,
Resolution / Pulse 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1250, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 8192, 65536,
Output Circuit / Push-Pull A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
Product Group Incremental Rotary Encoders,
