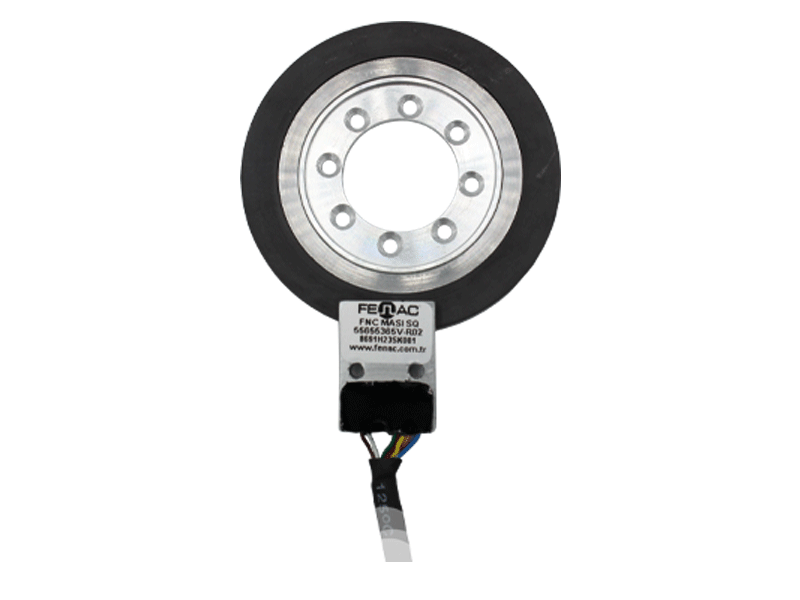

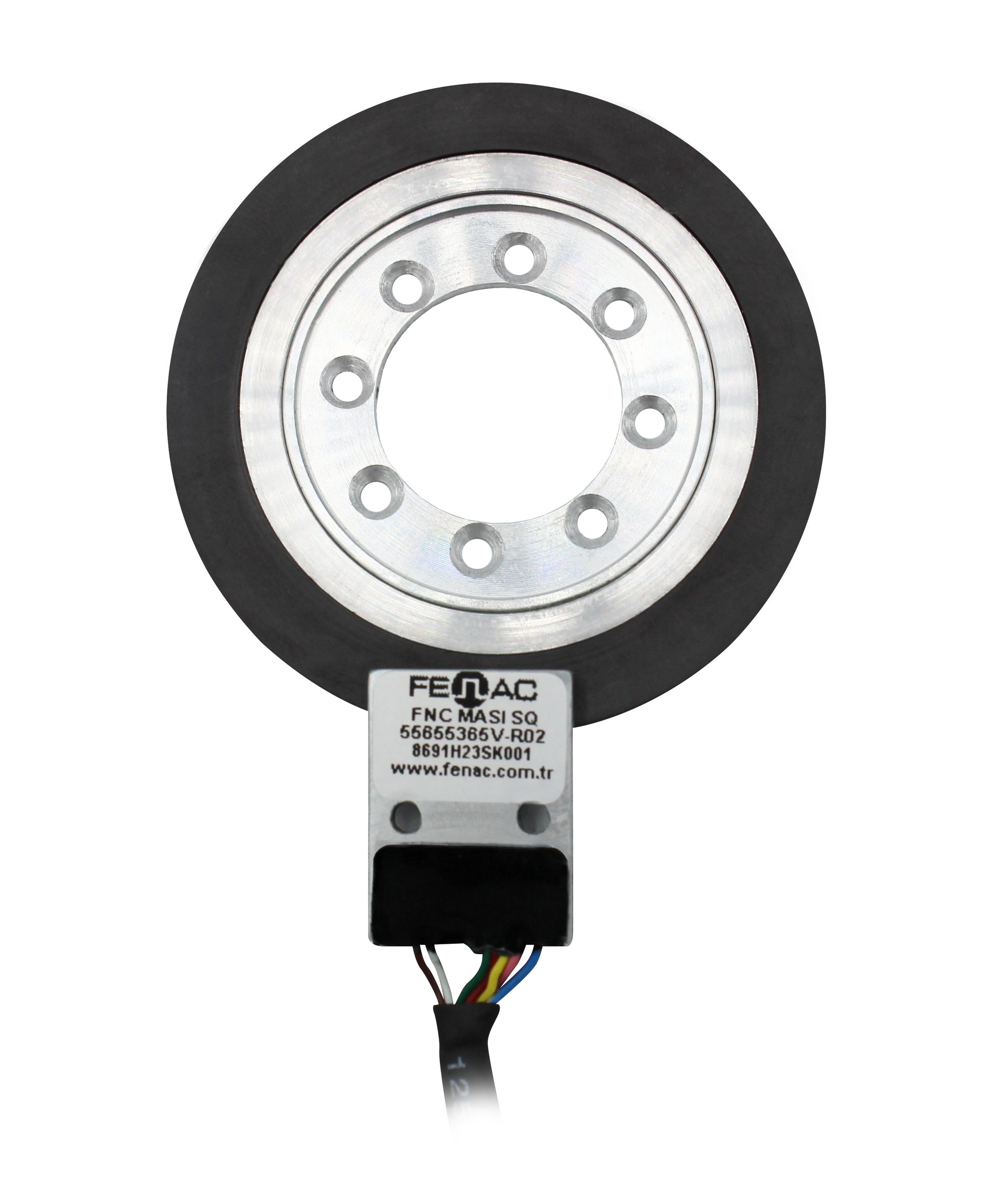

FNC MAS55 Serisi Rulmansız Enkoder
Yeni
Genel Özellikler
- Off-Axis Incremental & Commutation rotary encoder
- Robust mechanical and electrical construction
- Corrosion-resistant magnetic ring
- Outer diameter 30 mm
- Inner diameter 15 mm
- Up to 65.536 PPR max. incremental rotary encoder
- Up to 18 bit for absolute rotary encoder
- Up to 16 pole pairs
- <300 kHz
- Magnetic system
ISBN : FNC MASX P555V-R02
| Gövde Çapı | 55 mm, |
| Besleme Gerilimi | 5V : 5V in/out, 30V : 5-30V in/out, |
| Bağlantı Şekli | 1 mt Kablolu, 2 mt Kablolu, 5 mt Kablolu, 7 mt Kablolu, 10 mt Kablolu, |
| Mil/Delik Çapı | 35 mm, |
| Çözünürlük / Puls | 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 625, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000, 65536, |
| Çıkış Devresi / Push-Pull | A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, |
| Ürün Grubu | Rulmansız İnce Tasarım Enkoderler, |
