FNC 58B PAR Series Encoder

Features

  • Industry 58 mm standard size, clamping flange
  • Robust mechanical and electrical construction
  • Protection to IP67
  • Up to 65.536 PPR incremental output
  • <1 MHz frequency
  • Up to 10-bit parallel output
  • Optional strobe output for parallel output
  • Optional direction change input

ISBN : FNC 58B - PAR

Flange Diameter 58 mm,
Supply Voltage 30V : 5-30V in/out,
Shaft Diameter 6 mm, 8 mm, 10 mm, 12 mm,

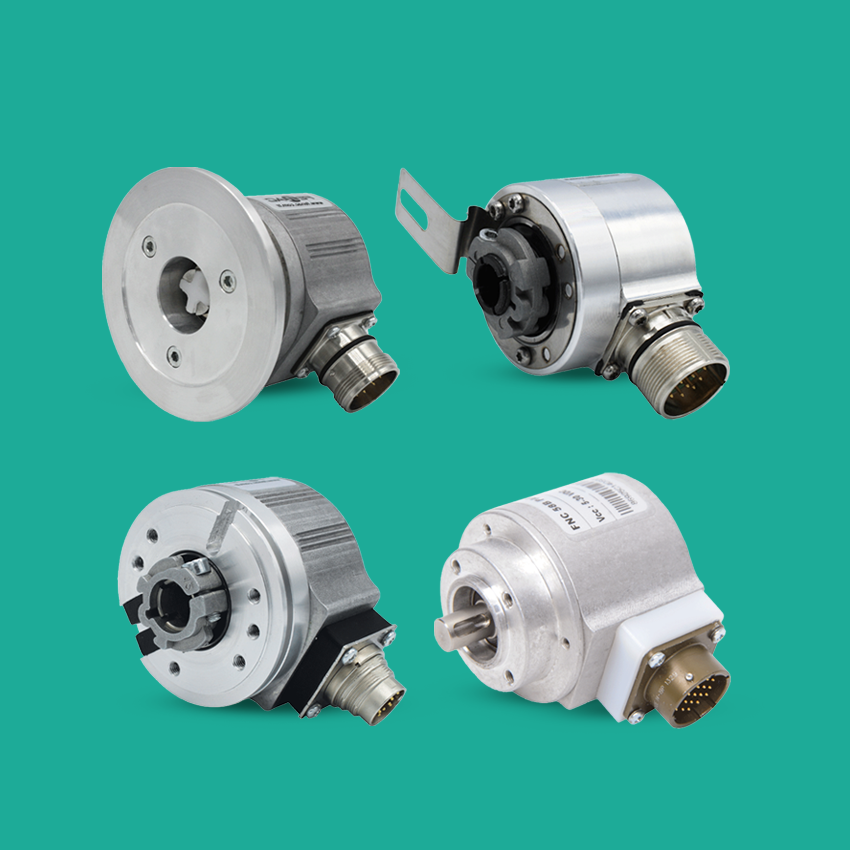

Product Group Textile Encoders,
  • FNC 58B PAR Series Encoder
